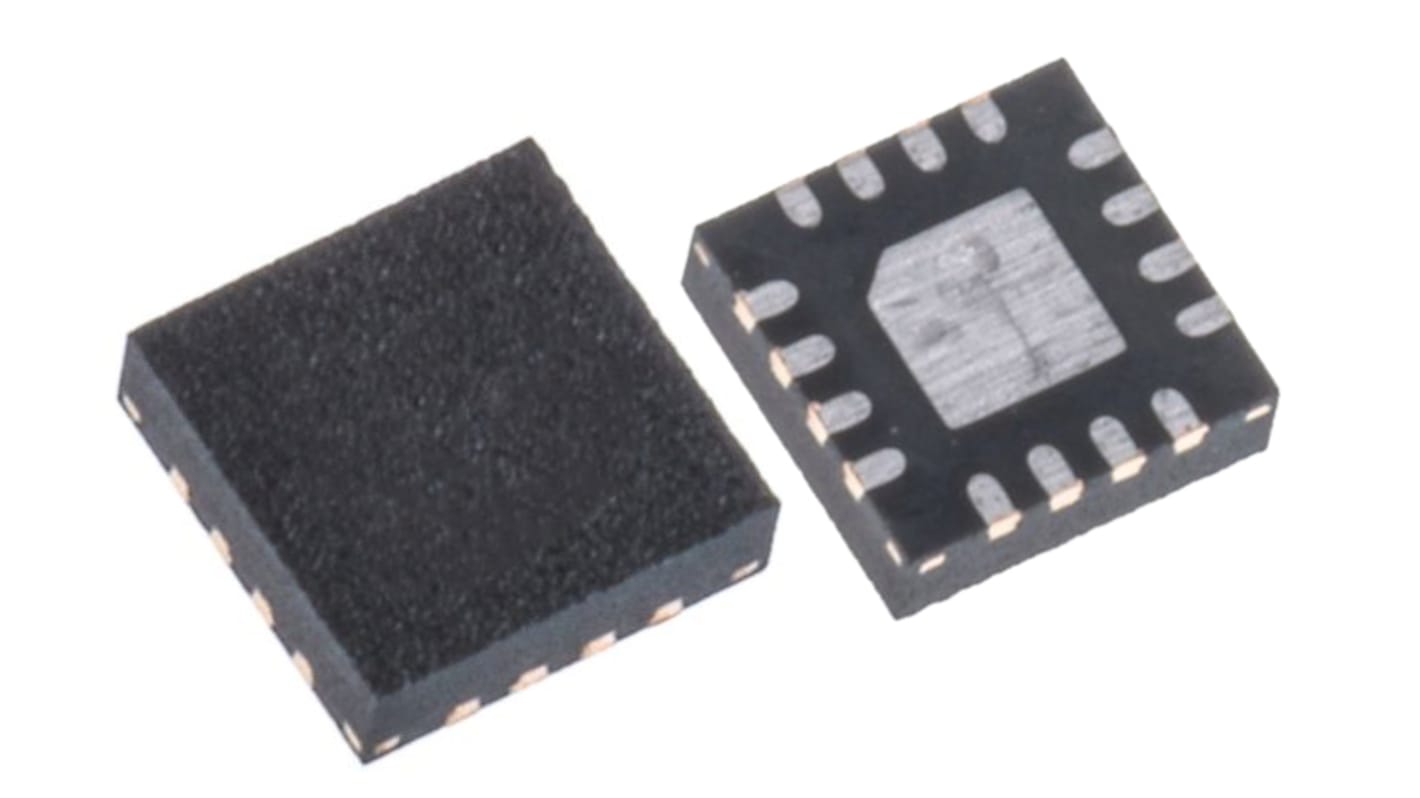

Commutateur RF Renesas Electronics 16 broches VFQFPN

The Renesas Electronics RF Switch is a high-reliability, low-insertion loss, 50 Ω SP2T absorptive RF switch designed for a wide range of markets and applications. This device covers a broad frequency range from 50 MHz to 8000 MHz, has an operating temperature range of -40 to 105°C and wide supply voltage range of 2.7 - 5.5 VDC. Designed for high-power handling, the RF Switch has a P1 dB as high as 36.5 dBm, supporting a peak operating power of 34 dBm in the through path and a hot switching power of 27 dBm into the terminated RF port. In addition to providing low-insertion loss, the RF Switch also delivers high isolation and low distortion performance while providing a 50 Ω termination to the unused RF ports. The RF Switch uses a single positive supply voltage supporting three logic control pins using either 3.3 V or 1.8 V control logic.

Dual symmetric broad band, absorptive RF ports
