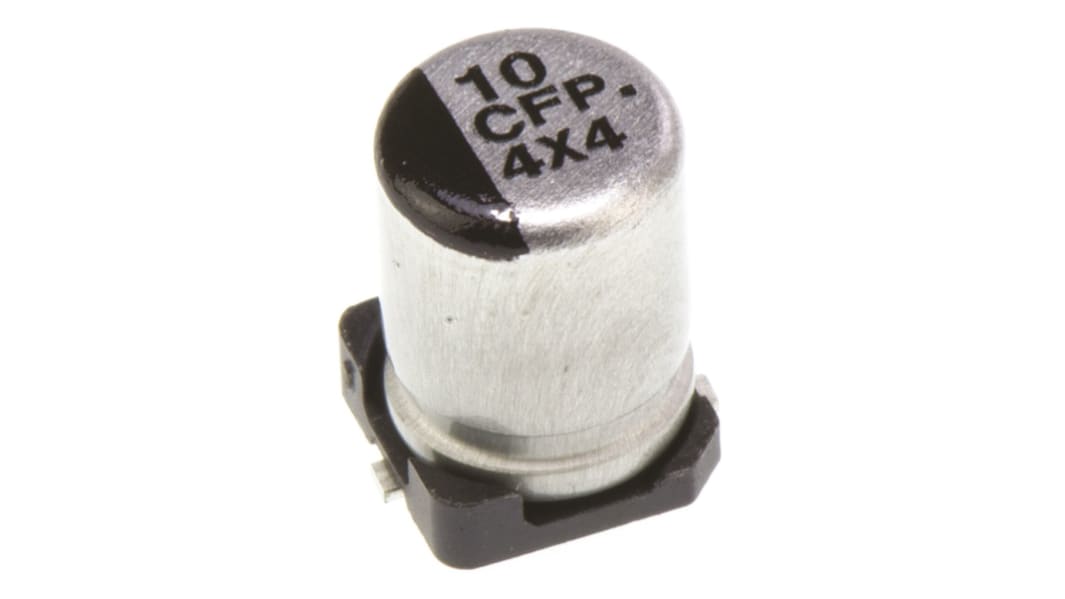

Condensateur électrolytique aluminium Panasonic série FP, Aluminium électrolytique 10μF, 16V c.c.

Code commande RS:: 568-840
Référence fabricant:: EEEFP1C100AR
Marque:: Panasonic

Condensateur électrolytique aluminium Panasonic série FP, Aluminium électrolytique 10μF, 16V c.c.

1 / 2

Prix l'unité (par multiple de 5)*

0,386 €

0,463 €

Frais de traitement offerts pour les commandes supérieures à 50,00 €

En stock

5 unité(s) prête(s) à être expédiée(s)
Plus 250 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité	le paquet*
5 +	0,386 €	1,93 €

*Prix donné à titre indicatif

Code commande RS:: 568-840
Référence fabricant:: EEEFP1C100AR
Marque:: Panasonic

Panasonic Series FP Aluminium Electrolytic Capacitor, 10μF Capacitance, 16V Voltage - EEEFP1C100AR

This aluminium electrolytic capacitor is designed for reliable performance in various electronic applications. With a capacitance value of 10 μF and a maximum voltage of 16V DC, it provides versatility for multiple circuit configurations. The compact dimensions of 4mm in diameter and a height of 5.8mm make it suitable for surface mount technology, allowing for efficient use in limited spaces.

Features & Benefits

• Designed for surface mount applications for ease of integration
• Polarised construction ensures correct circuit orientation
• Low equivalent series resistance at 850 mΩ for improved efficiency
• Capable of handling ripple currents up to 160 mA
• Wide operating temperature range from -55 °C to +105 °C
• Long lifespan of 2000 hours under typical usage conditions

Applications

• Used in power supply circuits where space is limited
• Ideal for filter in audio and video devices
• Employed in automation systems for voltage stability
• Suitable for smoothing capacitors in DC circuits
• Utilised in various electronic components requiring reliable energy storage

What are the implications of using this component in high-frequency applications?

Its low equivalent series resistance allows for efficient performance in high-frequency environments, minimising energy loss and heat generation, which is crucial for maintaining stability.

How does the operating temperature range affect application capabilities?

The extensive temperature range from -55 °C to +105 °C ensures that it remains functional in both extreme cold and hot conditions, making it suitable for outdoor or industrial applications.

What should be considered when integrating it into a circuit?

Proper circuit design must account for its polarised nature to prevent incorrect installation, ensuring optimal performance and avoiding damage.

What testing standards does this component typically conform to?

Although specific testing standards are not detailed, components like this generally undergo rigorous testing to ensure reliability and performance under specified voltage and temperature conditions.

Attribut	Valeur
Capacité	10µF
Tension	16V c.c.
Type de montage	Montage en surface
Technologie	Aluminium électrolytique
Dimensions	4 (Dia.) x 5.8mm
Hauteur	5.8mm
Longueur	5.8mm
Température d'utilisation minimum	-55°C
Diamètre	4mm
Température d'utilisation maximum	+105°C
Durée de vie	2000h
Résistance série équivalente	850mΩ
Polarisé	Polaire
Tolérance	±20%
Série	FP
Courant de fuite	3 μA
Courant d'ondulation	160mA
Facteur de dissipation	200%
